Automotive Connector & Terminal Database
Crystallize "connector part numbers" into a searchable, reusable industrial data asset
A connector & terminal database system built for the automotive wiring-harness industry: covering 13 mainstream manufacturers, 3,875 series, 24,776 connectors, 16,519 terminals, and 1.97M+ mate relationships — paired with a dark-themed collection monitor for live progress. This project is a sub data module under "Wiring Harness Drawing & Board Generation", and itself is built on the "RPA Agent Skills System" to do cross-vendor structured crawling, ingestion, and version maintenance — collapsing connector data scattered across vendor sites, PDF catalogs, and Excel sheets into a unified data asset for engineers.
Relationship With Other Systems
Each project is annotated with its position in the product system, making it easy to see at a glance how systems support each other.
Core Modules

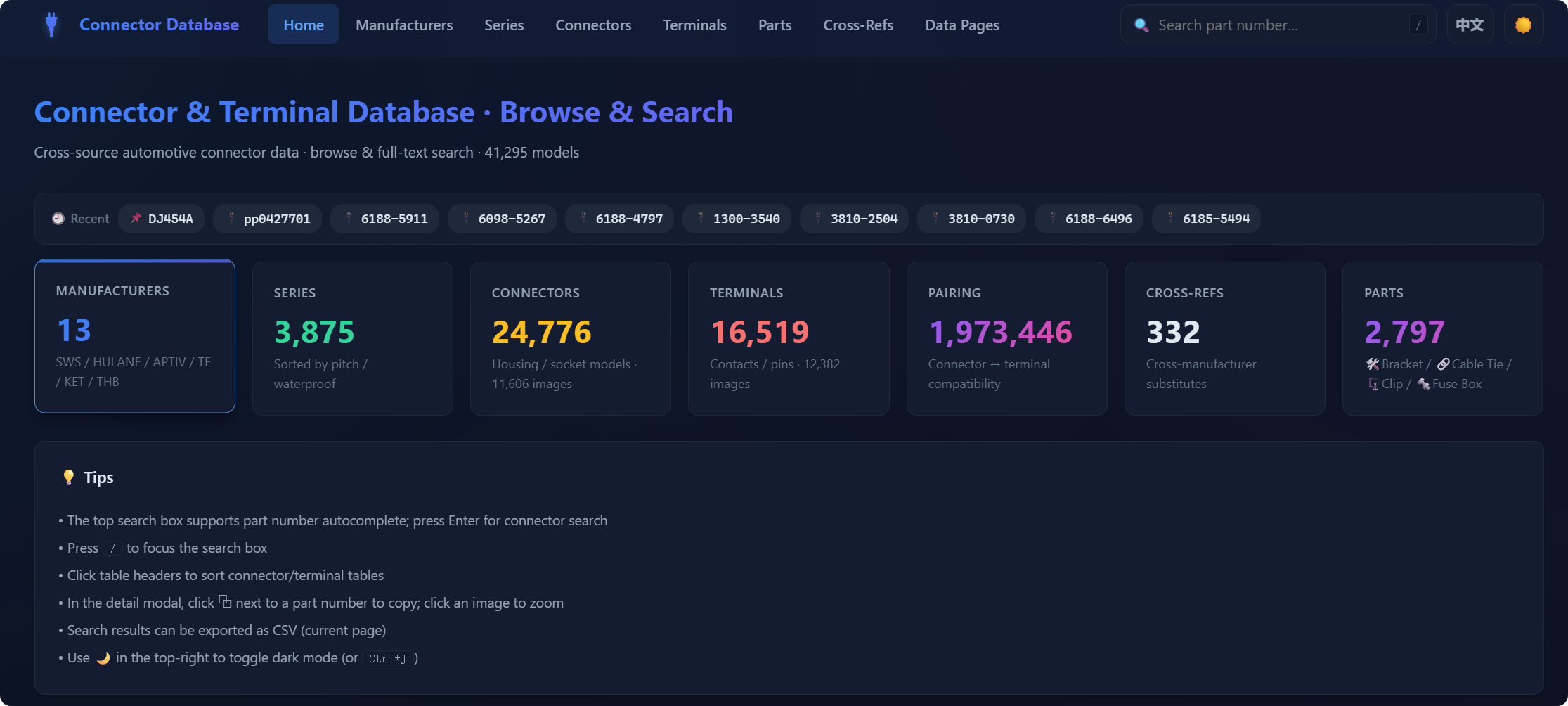

Database Overview (41,295 Parts)

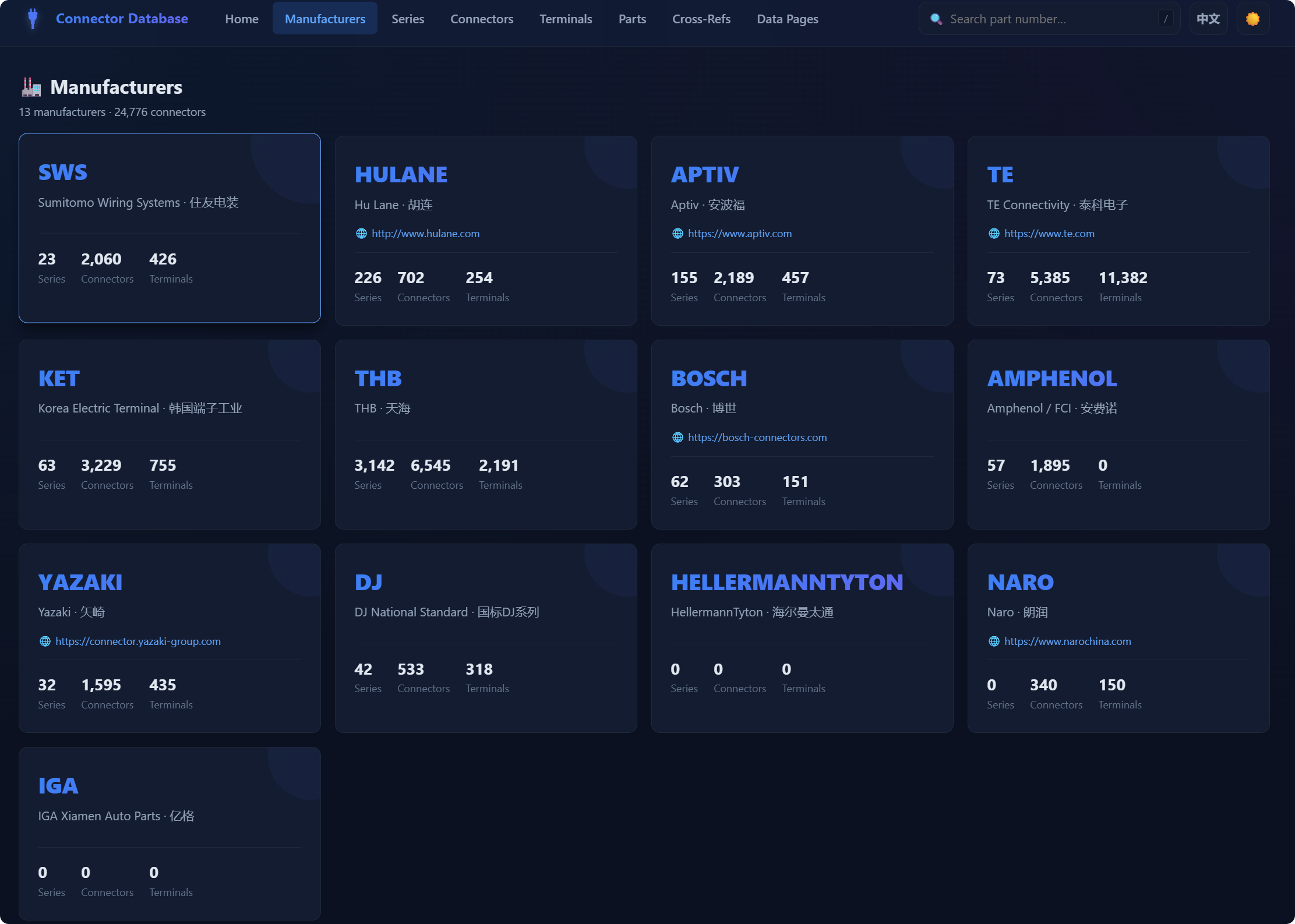

Manufacturer List (13 Vendors · 24,776 Connectors)

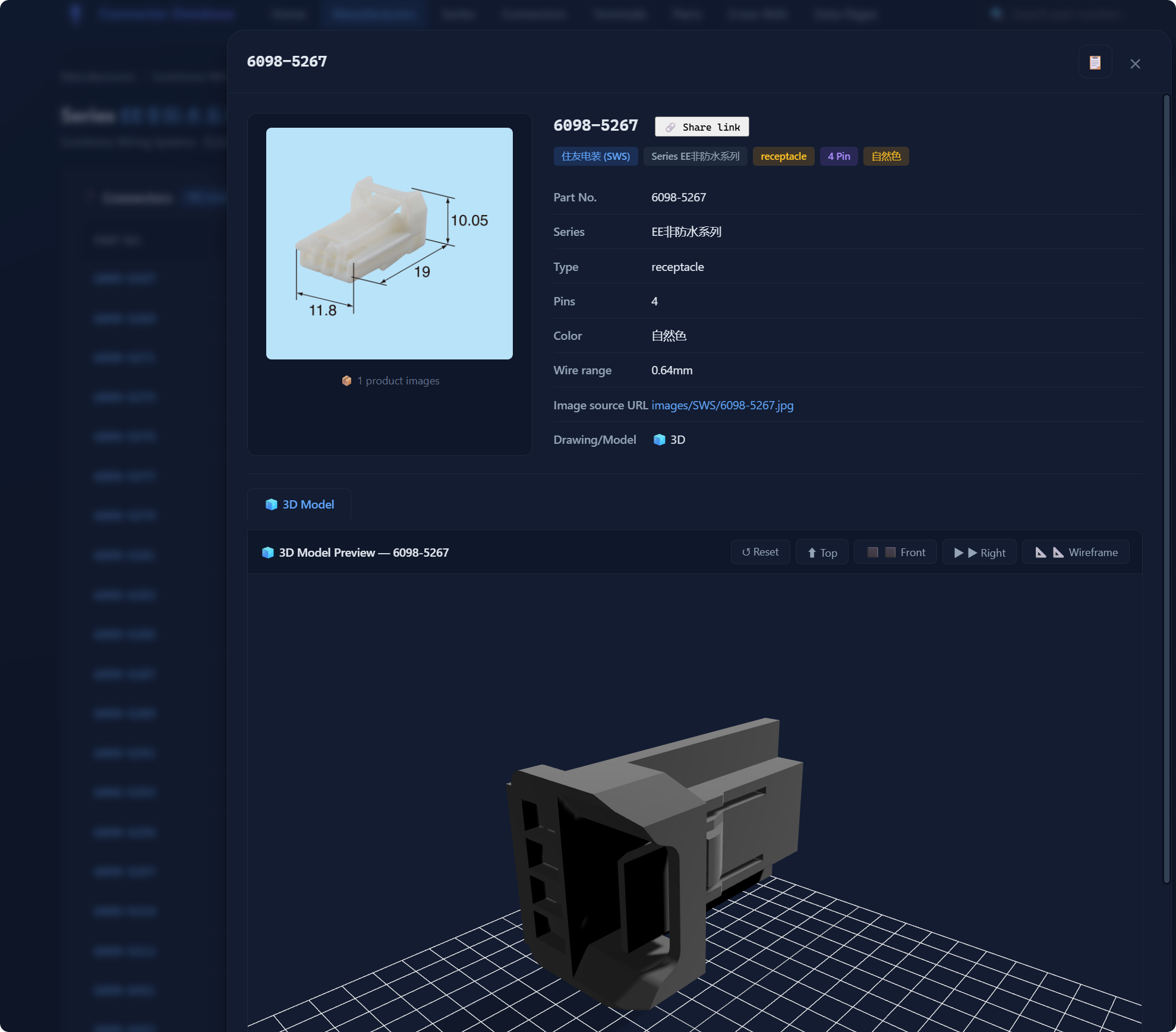

Part Detail (6098-5267 · with 3D Model)
Collection Monitor (Live Progress)
Design Philosophy
Upgrade "looking up a connector" from "flip Excel / flip PDF / ask the senior" to "search once on a web page".
Part-Number as Index
Use the part number (e.g. 6098-5267) as the unique index, linking manufacturer, series, type, pin count, color, wire range, drawing/3D model, and all other fields.
Mate-Relationship Network
1.97M+ mate relationships (connector-terminal-seal) are crystallized into a queryable network; when picking materials, engineers can see directly "who mates with whom".
Unified Cross-Vendor View
Catalogs from 13 vendors (SWS / HULANE / APTIV / TE / KET / THB / BOSCH / AMPHENOL / YAZAKI / DJ / HELLERMANNTYTON / NARO / IGA) are collapsed into one schema and one set of filters.
Extensible Crawl Pipeline
Adding a new vendor means adding a crawl config — no front-end changes; progress is visible at a glance on the dark monitor.
Industry Pain Points
Wiring-harness engineers deal with "connector info" every day, but that info is scattered across a dozen websites, hundreds of PDFs, and countless Excel sheets.
Info Scattered
Connector catalogs live on different vendor sites, in PDF directories, and in Excel BOM sheets; engineers have to jump between systems to find one document.
Hard to Search
Each vendor has a different directory structure with no unified index; reverse lookup by part number and cross-vendor comparisons are basically impossible.
Mate Relations Live in Memory
Terminal-seal-grommet mate relations are passed down verbally from senior to junior; new hires have a long ramp-up.
Data Staleness
When vendors release new parts, design teams only notice months later; some discontinued parts still appear in legacy drawings.
Drawings & 3D Hard to Find
A drawing or a STEP file can take half a day to locate; engineers often can't find the asset that matches the current part number.
Cross-Vendor Compare Hard
Whether an SWS connector and a HULANE connector with the same pin count are interchangeable, no one can tell — there's no unified cross-reference.
Core Capabilities
From "finding info" to "viewing assets" to "checking progress" — scattered data sources are crystallized into a unified data asset for engineers.
Multi-Source Aggregation
Web pages, PDF catalogs, and Excel sheets are unified; key fields (part number / series / type / pin / color / wire range) are ingested under one schema.
Full-Text Part-Number Search
Top-bar part-number search (e.g. 6098-5267) with auto-completion; results land directly on the part detail page.
Multi-Dimensional Filters
Cross-filter by manufacturer, series, type (receptacle / plug / housing…), pin count, color, accessory category.
Mate-Relationship Lookup
1.97M+ mate-relation network: connector ↔ terminal, connector ↔ seal, cross-vendor same-type comparisons, all queryable.
Drawing & 3D Preview
The part detail page shows the product image (images/SWS/6098-5267.jpg) and a rotatable 3D model (wireframe / top / front / right views).
Collection Monitor
Dark-themed live monitor showing the crawl progress of 11 vendors across connectors / series / terminals / mates / accessories (Cook label highlights the current focus vendor).
Export & Share
Search results can be exported to CSV in one click; the part page supports a "share link" / copy part-number link to a colleague.
From Vendor Sites to Engineer-Queryable
The data pipeline is driven by the "RPA Agent Skills System", chaining browser crawling, JS reverse-engineering, PDF/Excel parsing, and cross-vendor normalization into one observable pipeline.
Key Numbers · Current Collection Progress
Cross-checked between the monitor and the database, reflecting the real volume and growth of the data asset.
Key Breakthroughs
Engineer "looking up a connector" into a sustainable, extensible, observable data system.
Cross-Vendor Unified Data Model
1M+ parts across 13 vendors collapsed into one set of fields (part number / series / type / pin / color / wire range / mate); engineers learn once, applies everywhere.
RPA-Driven Crawl & Maintenance
Not a one-off crawler, but a sustainable pipeline based on the "RPA Agent Skills System": adding a vendor means adding a config; progress is visible on the monitor live.
Drawing & 3D on One Page
The part detail page shows the product image, a rotatable 3D model, and the drawing URL side by side; engineers no longer hop between systems to find assets.
Mate-Relationship Networked
1.97M+ mate relations are a queryable network; "who mates with whom" between terminals / seals / grommets is clear at a glance.
